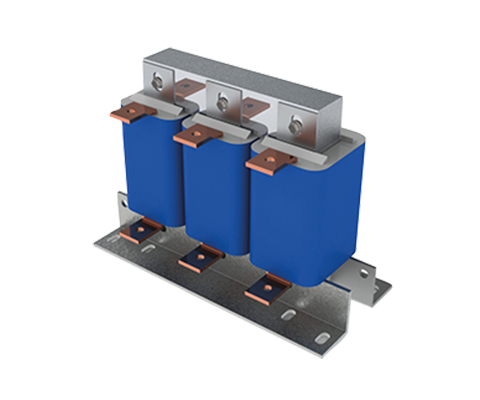

Choque de compensación (7 o 14% factor de desafinación)
Descripción
Equipos de compensación de armónicos y potencia reactiva; Protección de condensadores
Ventajas
- Tolerancia de inductancia baja
- Bajo ruido
- Comportamiento lineal incluso con corriente superior a la corriente nominal
- Conexión con terminales o cable opcionalmente
- Conforme a DIN EN 61558-2-20
- Voltaje de prueba: L-L 2100 V, DC 1 min L-PE 2700 V, DC 1 min
- Sobrecarga: 1,5 x INenn 1 min / h
- Categoría climática: DIN IEC 60068-1
- Clase térmica: H
- Clase de protección: IP00
- Tensión de salida : 25 – 600 V
- Corriente de salida : 2 – 600 A
- Potencia de salida : 1000 – 15000 W
- Tensión de entrada conmutable : Tensión de entrada conmutable [V] V
| Type Detuning factor 7% | Reactive power capacitors [kVAr] | Resonant frequency [Hz] | Reduction factor (p) [%] | Corriente nominal [A] | Current @ 50Hz [A] | Inductance per branch [mH] | Cobre [kg] | Peso [kg] |
| CNW 999/10/6 | 6,25 | 189 | 7 | 10,6 | 10,0 | 6,0 | 3 | 8 |
| CNW 999/19/3 | 12,5 | 189 | 7 | 20,5 | 19,0 | 3,0 | 4 | 9 |
| CNW 999/38/1,53 | 25 | 189 | 7 | 41,0 | 38,0 | 1,53 | 1 | 17 |
| CNW 999/75/0,78 | 50 | 189 | 7 | 80,0 | 75,0 | 0,78 | 1 | 28 |
| Type Detuning factor 14% | Reactive power capacitors [kVAr] | Resonant frequency [Hz] | Reduction factor (p) [%] | Corriente nominal [A] | Current @ 50Hz [A] | Inductance per branch [mH] | Cobre [kg] | Peso [kg] |
| CNW 999/9/14,5 | 6,25 | 134 | 14 | 9,1 | 9,0 | 14,5 | 5 | 9 |
| CNW 999/19/6,9 | 12,5 | 134 | 14 | 19,1 | 19,0 | 6,9 | 5 | 15 |
| CNW 999/38/3,5 | 25 | 134 | 14 | 38,2 | 38,0 | 3,5 | 1 | 24 |
| CNW 999/76/1,73 | 50 | 134 | 14 | 76,5 | 76,0 | 1,73 | 1 | 43 |
Dimensiones en mm
| Type Detuning factor 7% | L [mm] | B [mm] | H [mm] | N1 [mm] | N2 [mm] | D1 [mm] | D2 [mm] | Distance [mm] | Peso [kg] |
| CNW 999/10/6 | 190 | 101 | 155 | 170 | 69 | 8×12 | – | 30 | 7 |
| CNW 999/19/3 | 190 | 111 | 155 | 170 | 79 | 8×12 | – | 30 | 8 |
| CNW 999/38/1,53 | 240 | 150 | 205 | 185 | 97 | 10×18 | 9 | 55 | 17 |
| CNW 999/75/0,78 | 265 | 172 | 225 | 200 | 122 | 10×18 | 9 | 55 | 28 |
| Type Detuning factor 14% | L [mm] | B [mm] | H [mm] | N1 [mm] | N2 [mm] | D1 [mm] | D2 [mm] | Distance [mm] | Peso [kg] |
| CNW 999/9/14,5 | 190 | 97 | 157 | 170 | 69 | 8×12 | – | 30 | 9 |
| CNW 999/19/6,9 | 240 | 111 | 209 | 185 | 88 | 8×12 | – | 45 | 15 |
| CNW 999/38/3,5 | 265 | 265 | 225 | 200 | 104 | 10×18 | 9 | 55 | 24 |
| CNW 999/76/1,73 | 300 | 197 | 225 | 224 | 144 | 10×18 | 9 | 65 | 43 |
